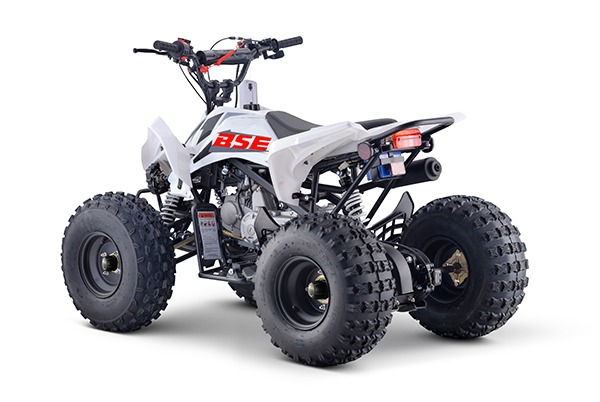

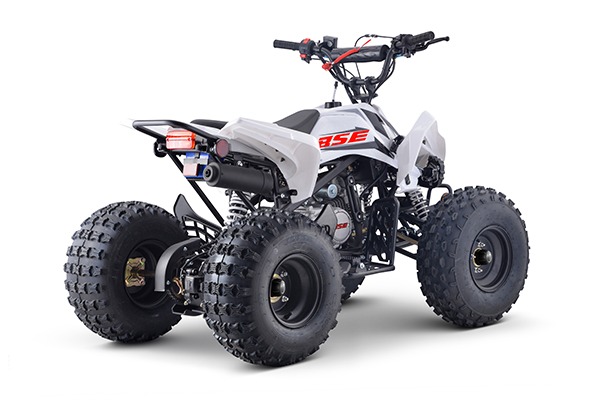

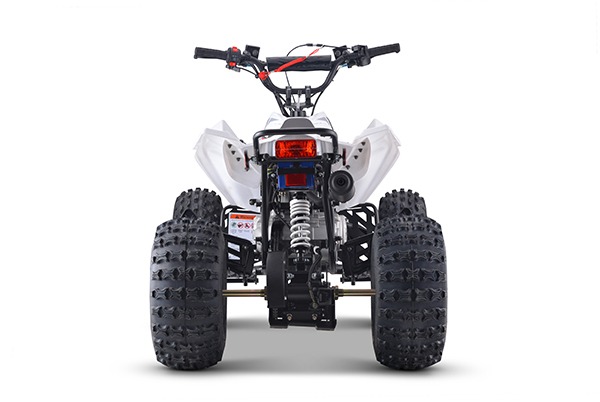

For daily runs at rental parks or dealers’ test loops, this 180cc quad keeps things straightforward. Power is modest and smooth, with an air‑cooled engine rated at 8.3 kW. A single forward gear and reverse make parking and tight turns easy. The steel chassis and hydraulic disc brakes stand up to routine use, while 10‑inch wheels and 160 mm of clearance handle mixed surfaces. Travel measures 275 mm in front and 270 mm at the rear. Seat height is 780 mm; wheelbase 1060 mm. A 5.5 L tank keeps downtime low.
| ENGINE CAPACITY | 180CC |
|---|---|
| GEAR | 1+1 forward & reverse |
| ENGINE POWER | 8.3 kW / 6000 rpm |
| Fuel tank | 5.5 L |
| Seat height | 780 mm |
| Wheel base | 1060 mm |
| Ground clearance | 160 mm |
| FRAME | Steel, independent rock arm in front, monor shock rear swing arm |
| SHOCK | Front: 275 mm Rear: 270 mm |
| WHEEL | 10 inches |
| RIM SIZE | 10*5.5 AT-4/110 90 10*8.0 AT-4/110 90 |
| Tire size | 23*7-10 22*10-10 |
| DEMISSION | 1780 x 1000 x 1100 mm |
| Loading Qty | 20FT: 12 PCS 40HQ: 42 PCS |
